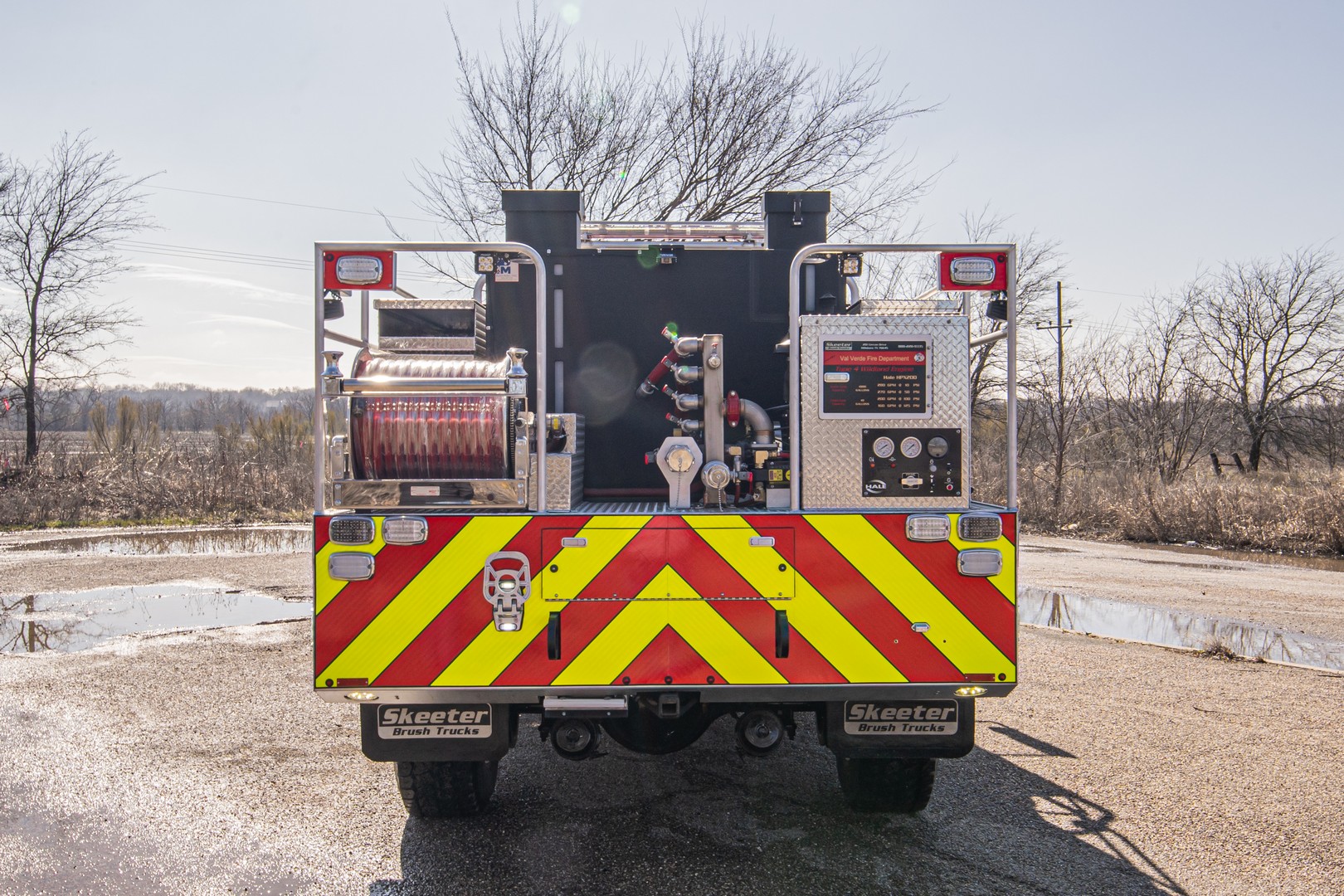

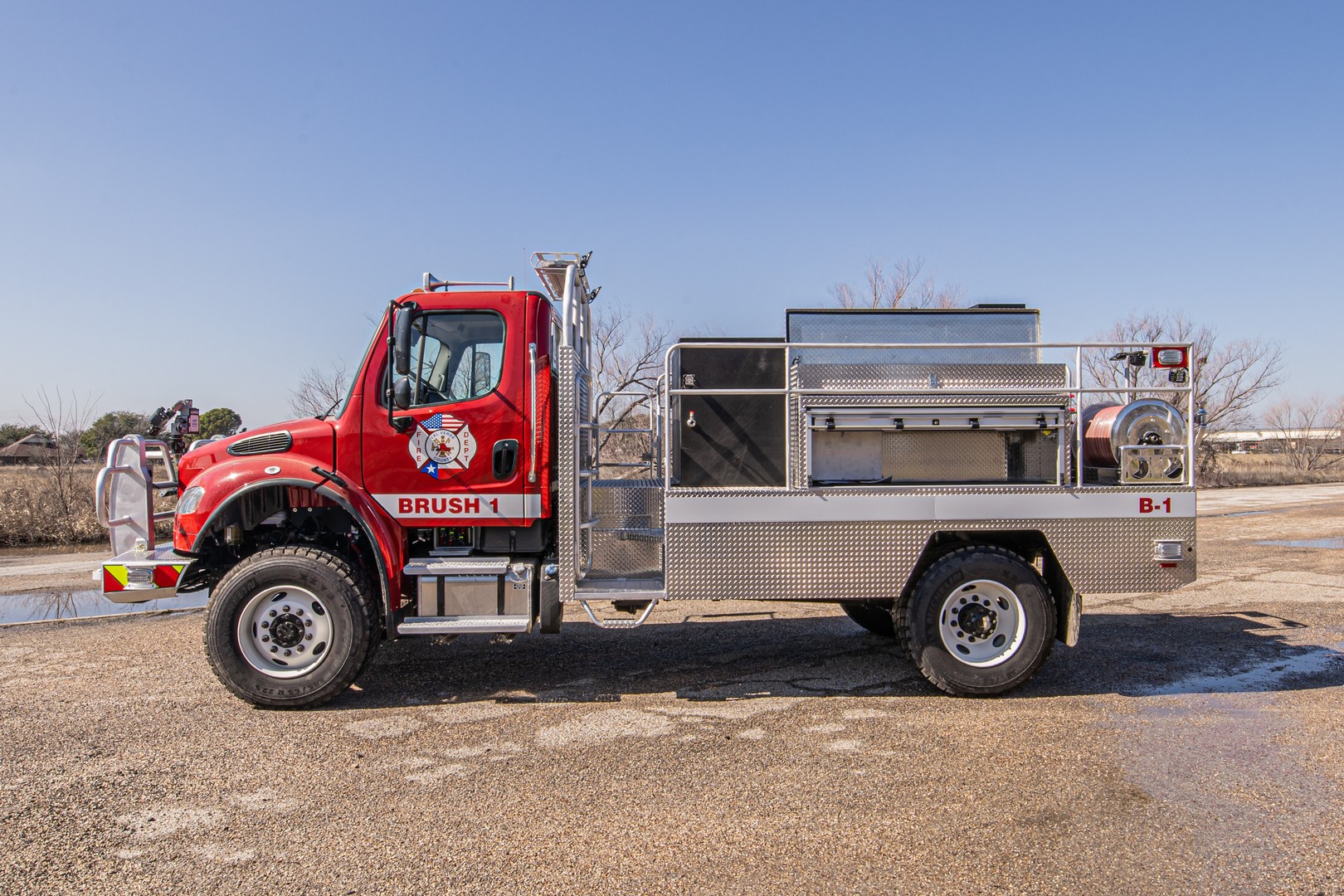

Our team has completed a new type 4 wildland unit for Val Verde Co. Fire & Rescue in Del Rio, TX. It’s a Skeeter Step-Side Body, Alum, 168 on a Freightliner M2, 106 2 Door Diesel, 4×4 chassis with a 1000 Gallons Poly water tank. Check out the complete specs for Job No. S14664-01 below.
Dealer Information
Ryan Crady
281-413-1622
[email protected]
Siddons-Martin Emergency Group
www.Siddons-Martin.com
More Info
TRUCK DETAILS
Paint (Single Stock Color) |
Freightliner M2, 106, 2 Door, Diesel, 4×4 |
Upgrade Factory Tires |
Chassis Fleet/Government Incentive Discount |
Spare Tire and Wheel |
Custom Fabricated Bumper/Grill Guard, (Big Truck) Tilt Front End |
Mud Flaps, Rear Wheels, SBT Logo |
Front Bumper, 5/16″ Skid Protection Panel, Heavy Duty |
Cab Console, Poly, Custom |
Battery Switch, Master Disconnect, CH, Rotary |
Ground Lights, Cab, 2 Door, LED STRIPS |
Tilt Meter |
Back-Up Camera, Rear View Safety, (1) camera |
Radio, Fire, Installation, Purchaser Supplied |
Radio, Fire, Installation, Purchaser Supplied – Antenna Only |
Receiver, Rear, Winch/Rope/Trailer, 10,000# |
Step-Side Body, Alum, 168″ x 100″, 102 CA |
Diamond Plate Finish Body and Compartments/Trays |
Upgrade Compartments – Roll-Up Doors |
Compartment, Drivers Side, Lift-Up Dual Door 72″ |
Compartment, Passengers Side, Lift-Up Door 72″ |
Rear Center Under Body Compt, Drop Down Door |
Equipment Tray, Alum, UHMW slide |
Door Ajar Light, Flashing, Red LED |
Hose Tray, Driver’s Side, 72 in. long |
Tool Tray, Passenger Side, 72 in. long. |
Rear Step, Pull out and drop down |
Step, Sig-4, Folding, Lighted, DS REAR(1) |
Side Body Access Steps, Stirrup (2) |
Ground Lights, Under Rear Step, LED (2), Grote #63871 |
Body Work Lights, LED, (4), Grote #63871 |
Console Fuse Block Upgrade |
Fuse Box |
Chassis Harness |
Wiring Harness, Body Electrical |
Clearance Lights, LED, DOT |
License Plate, Mount, Lighting |
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC |
Back up Lights, Whelen M6 Series, LED, |
Scene Light, Flood, Rigid 10″ |
Scene Light, (6) Rigid Dually |
Back Up Alarm |
Whelen Cencom Carbide, Electronic Siren |
Speaker, Whelen, #SA315P, 100 Watt |
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection |
Lightbar, Whelen,Legacy, 54″ |
Warning Lights, Whelen, M-6 Series (12) Lights |
Headlight Flasher, Whelen UHF2150A |
Pump, Hale, Aux, Diesel, HPX200-KBD 24 Kubota |
Standard Stainless Steel Manifold |
Valves, S/S, Quarter Turn |
Hose Threads |
Exhaust System, Vertical, Rain Cap, Aux Pump |
Primer, Electric, Aux Pump, Additional or IPOS |
Pump Enclosure – Diesel Pump |
Pump Control Panel in Pump Dog House |
Dual Pump Controls (Electronic), Diesel Pump |
Pump Fuel from Chassis |
Battery Supply, 12V, Chassis, Master Switch & Solenoid |
Pump Drain, Master Drain–Low Point |
Aux Fire Pump Mntg, P/S Rear, Bolted |
Pump Engine Oil Drain |
Upgrade Manifold for Bumper Discharges |
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl |
Tank-To-Pump, Water Tank, 3″, Install |
Tank Fill and Cooling Line, Water Tank, 1.5″ Aux Pump |
Discharge, .75″GH, Rear, Garden Hose Outlet |
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap |
Discharge, 1.5″, Front Body (Through Tank) |
Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum |
200 Foot Reel Capacity |
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl |
Nozzle Mounting |
Hose, Water, 300#, 1″ x 150′ |
Roller, Hose Reel, Top |
Ground Sweep Discharges, Front Bumper |
Bmpr Monitor, TFT EF1 |
Whip Hose Lines (2) Front Body 1″ x 12′, Booster Hose, 300#, w/cplgs |
Foam system, Scotty #4171, Through-the-pump, Built-in, Aux Pump |
Water Tank Capacity, 1000 Gallons, Poly |
Water Tank, Specs |
Water Tank Shape, Rectangular |
Water Tank, NFPA Compliance |
Tank Gauge, Translucent Tank Sight Level |
Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner |
Overflow, Water Tank, 4″ PVC Pipe, <900G |
Pump to Tank, Fill Connection, 1.5″, 300 GPM Flow |
Water Tank Drain Plug, 1.5″ |
Foam Tank Capacity, 10 Gallons, Class A, Poly |
Foam Tank, Fill and Vent, Class A |
Foam Tank to Foam System, 3/4″ |
Foam Tank Drain and Valve, 3/4″ |
Door Graphic Emblems, (2) Custom |
No Cab Roof Lettering |
Stripe, Cab/Body, Single Reflective, 4″ |
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper |
Stripe, Reflective, SCOTCHLITE, Chevron, Rear |
Capacities Placard, Reflective |
Nozzles (3) TFT, DS1040BCP, 1″, Bubble Cup, Grip Dual Gal, 10/40 |
Spanner Set, Kocheck, 2-Spanner / Hydrant, Mounted |
- CHASSIS
-
Paint (Single Stock Color) Freightliner M2, 106, 2 Door, Diesel, 4×4 Upgrade Factory Tires Chassis Fleet/Government Incentive Discount Spare Tire and Wheel Custom Fabricated Bumper/Grill Guard, (Big Truck) Tilt Front End Mud Flaps, Rear Wheels, SBT Logo Front Bumper, 5/16″ Skid Protection Panel, Heavy Duty Cab Console, Poly, Custom Battery Switch, Master Disconnect, CH, Rotary Ground Lights, Cab, 2 Door, LED STRIPS Tilt Meter Back-Up Camera, Rear View Safety, (1) camera Radio, Fire, Installation, Purchaser Supplied Radio, Fire, Installation, Purchaser Supplied – Antenna Only - BODY
-
Receiver, Rear, Winch/Rope/Trailer, 10,000# Step-Side Body, Alum, 168″ x 100″, 102 CA Diamond Plate Finish Body and Compartments/Trays Upgrade Compartments – Roll-Up Doors Compartment, Drivers Side, Lift-Up Dual Door 72″ Compartment, Passengers Side, Lift-Up Door 72″ Rear Center Under Body Compt, Drop Down Door Equipment Tray, Alum, UHMW slide Door Ajar Light, Flashing, Red LED Hose Tray, Driver’s Side, 72 in. long Tool Tray, Passenger Side, 72 in. long. Rear Step, Pull out and drop down Step, Sig-4, Folding, Lighted, DS REAR(1) Side Body Access Steps, Stirrup (2) Ground Lights, Under Rear Step, LED (2), Grote #63871 Body Work Lights, LED, (4), Grote #63871 - ELECTRICAL
-
Console Fuse Block Upgrade Fuse Box Chassis Harness Wiring Harness, Body Electrical Clearance Lights, LED, DOT License Plate, Mount, Lighting Stop/Tail/Turn Lights, Whelen M6BTT/M6FC Back up Lights, Whelen M6 Series, LED, Scene Light, Flood, Rigid 10″ Scene Light, (6) Rigid Dually Back Up Alarm Whelen Cencom Carbide, Electronic Siren Speaker, Whelen, #SA315P, 100 Watt Lightbar Mounting, Headache Rack, Alum, Enclosure Protection Lightbar, Whelen,Legacy, 54″ Warning Lights, Whelen, M-6 Series (12) Lights Headlight Flasher, Whelen UHF2150A - SUPPRESION
-
Pump, Hale, Aux, Diesel, HPX200-KBD 24 Kubota Standard Stainless Steel Manifold Valves, S/S, Quarter Turn Hose Threads Exhaust System, Vertical, Rain Cap, Aux Pump Primer, Electric, Aux Pump, Additional or IPOS Pump Enclosure – Diesel Pump Pump Control Panel in Pump Dog House Dual Pump Controls (Electronic), Diesel Pump Pump Fuel from Chassis Battery Supply, 12V, Chassis, Master Switch & Solenoid Pump Drain, Master Drain–Low Point Aux Fire Pump Mntg, P/S Rear, Bolted Pump Engine Oil Drain Upgrade Manifold for Bumper Discharges Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl Tank-To-Pump, Water Tank, 3″, Install Tank Fill and Cooling Line, Water Tank, 1.5″ Aux Pump Discharge, .75″GH, Rear, Garden Hose Outlet Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap Discharge, 1.5″, Front Body (Through Tank) Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum 200 Foot Reel Capacity Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl Nozzle Mounting Hose, Water, 300#, 1″ x 150′ Roller, Hose Reel, Top Ground Sweep Discharges, Front Bumper Bmpr Monitor, TFT EF1 Whip Hose Lines (2) Front Body 1″ x 12′, Booster Hose, 300#, w/cplgs Foam system, Scotty #4171, Through-the-pump, Built-in, Aux Pump Water Tank Capacity, 1000 Gallons, Poly Water Tank, Specs Water Tank Shape, Rectangular Water Tank, NFPA Compliance Tank Gauge, Translucent Tank Sight Level Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner Overflow, Water Tank, 4″ PVC Pipe, <900G Pump to Tank, Fill Connection, 1.5″, 300 GPM Flow Water Tank Drain Plug, 1.5″ Foam Tank Capacity, 10 Gallons, Class A, Poly Foam Tank, Fill and Vent, Class A Foam Tank to Foam System, 3/4″ Foam Tank Drain and Valve, 3/4″ - GRAPHICS
-
Door Graphic Emblems, (2) Custom No Cab Roof Lettering Stripe, Cab/Body, Single Reflective, 4″ Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper Stripe, Reflective, SCOTCHLITE, Chevron, Rear Capacities Placard, Reflective - EQUIPMENT
-
Nozzles (3) TFT, DS1040BCP, 1″, Bubble Cup, Grip Dual Gal, 10/40 Spanner Set, Kocheck, 2-Spanner / Hydrant, Mounted
