Portland Fire & Rescue

Delivered Units, Rescue-Side Type 5/6

Our team has completed 2 new type 5 wildland units for Portland Fire & Rescue in Portland, OR. It’s a Skeeter Rescue Side, Alum, 114 on a Ford F550 – 4×4 – Diesel – 2 Door chassis with a 400 Gallon Poly water tank. Check out the complete specs for Job No. 14568 below.

Dealer Information

Nick Hendricks
503-961-4749
[email protected]

Hughes Fire Equipment Inc.
www.hughesfire.com
More Info

TRUCK DETAILS

Duplicate Manuals
Paint (Single Stock Color)
Ford F550 – 4×4 – Diesel – 2 Door (2020)
Electronic Shift On The Fly & Auto Hubs
Power Package (Electric Windows, Locks, Mirrors)
XL Value Package
Fuel Filler Extension
Trailer Brake Electric Controller, Electronic
Chassis PTO Output
Suspension System, FORD, 4×4, 6″, 4 Link
Tires and Wheels, Super Single 335/80 R20 (4)
Spare Tire and Wheel, Super Single 335/80 R20 (1)
Skeeter Aluminum Custom Bumper
Fender Flares
Mud Flaps, Rear Wheels, SBT Logo
1/4″ Skid Protection Panel
Transfer Case, Skid Protection Panel
Cab Steps, Custom Painted, (4) Door or Extended Cab
Cab Console, Poly, Custom
Warning Buzzer
Winch, Warn, #M16ti, Electric, Front Mount, 16,500#
Battery Switch, Master Disconnect, CH, Rotary
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Trailer Hitch Power Plug, 12V, 7 Prong
FRC SoBrite LED Off-Road Lights, 6′ (2)
Ground Lights, Front Bumper, LED (2) Grote #63871
Ground Lights, Cab, 2 Door, LED STRIPS
Bed Liner, Body/Step Surfaces
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Rescue Side, Alum, 114″ x 96″, 60CA
Light Bar Raise Bracket
Transverse Compartment (Rescue-Side) 18″W
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Chain Guard, Wheel Well
Custom Compartment Shelving
Compartments, (2) Rear Body, Vertical, Rescue Style, 32″ x 44″, Swing Doors
Rear Center Under Body Compt, Drop Down Door
Equipment Tray, Alum, UHMW slide
Key Locks, Compartments, Hinged Doors
No Body Vents
Compartment Lights, LED Strip Light
Compartment Light Door Switches, Automatic
Door Ajar Light, Flashing LED, Clear Lens
Hose Tray, Driver’s Side, 72 in. long
Tool Tray, Passenger Side, 72 in. long.
Full Length Hose Tray Divider
I-Zone Brackets
Diamond Plate Laminate
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, DS REAR(1)
Ground Lights, Under Rear Of Body Step, LED (2),
Body Work Lights, LED, (4), Grote #63871
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
As-Built Wiring Diagram
Clearance Lights, LED, DOT
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene/Smoke Light, Combo, Vision X, 20″
Light Poles, Telescoping
Scene Lights, Whelen Pioneer, PFP1 (2)
Scene Lights, Whelen Pioneer, PFP2 (2)
Spare Circuit, Radio
Back-up Alarm
Whelen Cencom Carbide, Electronic Siren
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection
Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
Pump Darley, 2.5 AGE 24K Diesel
PUMP TEST NUMBERS
Standard Stainless Steel Manifold
High Pressure Hose
Pump Check Valve, 2.5″
Valves, S/S, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Electric, Aux Pump, Additional or IPOS
Pump Enclosure – Diesel Pump
Low Water Pressure Cut-Off
Pump Fuel from Chassis
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Engine Oil Drain
Pump Cooler, Bypass-To-Tank, 3/8″
Pump Drain, Master Drain–Low Point
Upgrade Manifold for Bumper Discharges
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1.5″ Aux Pump
Manifold inlet, 4″ Rear
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Discharge, 1.5″, Rear, Pre-connect
Discharge, 1.5″, Front Bumper
Discharge, 1.5″, Front Body (Through Tank)
Hose Reel, Hannay, Center Mount Over Pump, Elec Rewind, Alum
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 800#, 1″ x 200′
Ground Sweep Discharges, Front Bumper
Foam System, FoamPro, 1601, Class A
Water Tank Gauge, Class 1, Rear & Cab
Water Tank Capacity, 400 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner
Overflow, Water Tank, 3″ PVC Pipe, <500G
Tank to Pump, Piping Connection, 3″, 350 GPM Flow
Pump to Tank, Fill Connection, 1.5″, 100 GPM Flow
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 10 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
Foam Tank Gauge, Class 1, Class A, Rear & Cab
Reflective Lettering, Purchaser Installed
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
CHASSIS
Duplicate Manuals
Paint (Single Stock Color)
Ford F550 – 4×4 – Diesel – 2 Door (2020)
Electronic Shift On The Fly & Auto Hubs
Power Package (Electric Windows, Locks, Mirrors)
XL Value Package
Fuel Filler Extension
Trailer Brake Electric Controller, Electronic
Chassis PTO Output
Suspension System, FORD, 4×4, 6″, 4 Link
Tires and Wheels, Super Single 335/80 R20 (4)
Spare Tire and Wheel, Super Single 335/80 R20 (1)
Skeeter Aluminum Custom Bumper
Fender Flares
Mud Flaps, Rear Wheels, SBT Logo
1/4″ Skid Protection Panel
Transfer Case, Skid Protection Panel
Cab Steps, Custom Painted, (4) Door or Extended Cab
Cab Console, Poly, Custom
Warning Buzzer
Winch, Warn, #M16ti, Electric, Front Mount, 16,500#
Battery Switch, Master Disconnect, CH, Rotary
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Trailer Hitch Power Plug, 12V, 7 Prong
FRC SoBrite LED Off-Road Lights, 6′ (2)
Ground Lights, Front Bumper, LED (2) Grote #63871
Ground Lights, Cab, 2 Door, LED STRIPS
BODY
Bed Liner, Body/Step Surfaces
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Rescue Side, Alum, 114″ x 96″, 60CA
Light Bar Raise Bracket
Transverse Compartment (Rescue-Side) 18″W
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Chain Guard, Wheel Well
Custom Compartment Shelving
Compartments, (2) Rear Body, Vertical, Rescue Style, 32″ x 44″, Swing Doors
Rear Center Under Body Compt, Drop Down Door
Equipment Tray, Alum, UHMW slide
Key Locks, Compartments, Hinged Doors
No Body Vents
Compartment Lights, LED Strip Light
Compartment Light Door Switches, Automatic
Door Ajar Light, Flashing LED, Clear Lens
Hose Tray, Driver’s Side, 72 in. long
Tool Tray, Passenger Side, 72 in. long.
Full Length Hose Tray Divider
I-Zone Brackets
Diamond Plate Laminate
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, DS REAR(1)
Ground Lights, Under Rear Of Body Step, LED (2),
Body Work Lights, LED, (4), Grote #63871
ELECTRICAL
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
As-Built Wiring Diagram
Clearance Lights, LED, DOT
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene/Smoke Light, Combo, Vision X, 20″
Light Poles, Telescoping
Scene Lights, Whelen Pioneer, PFP1 (2)
Scene Lights, Whelen Pioneer, PFP2 (2)
Spare Circuit, Radio
Back-up Alarm
Whelen Cencom Carbide, Electronic Siren
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection
Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
SUPPRESION
Pump Darley, 2.5 AGE 24K Diesel
PUMP TEST NUMBERS

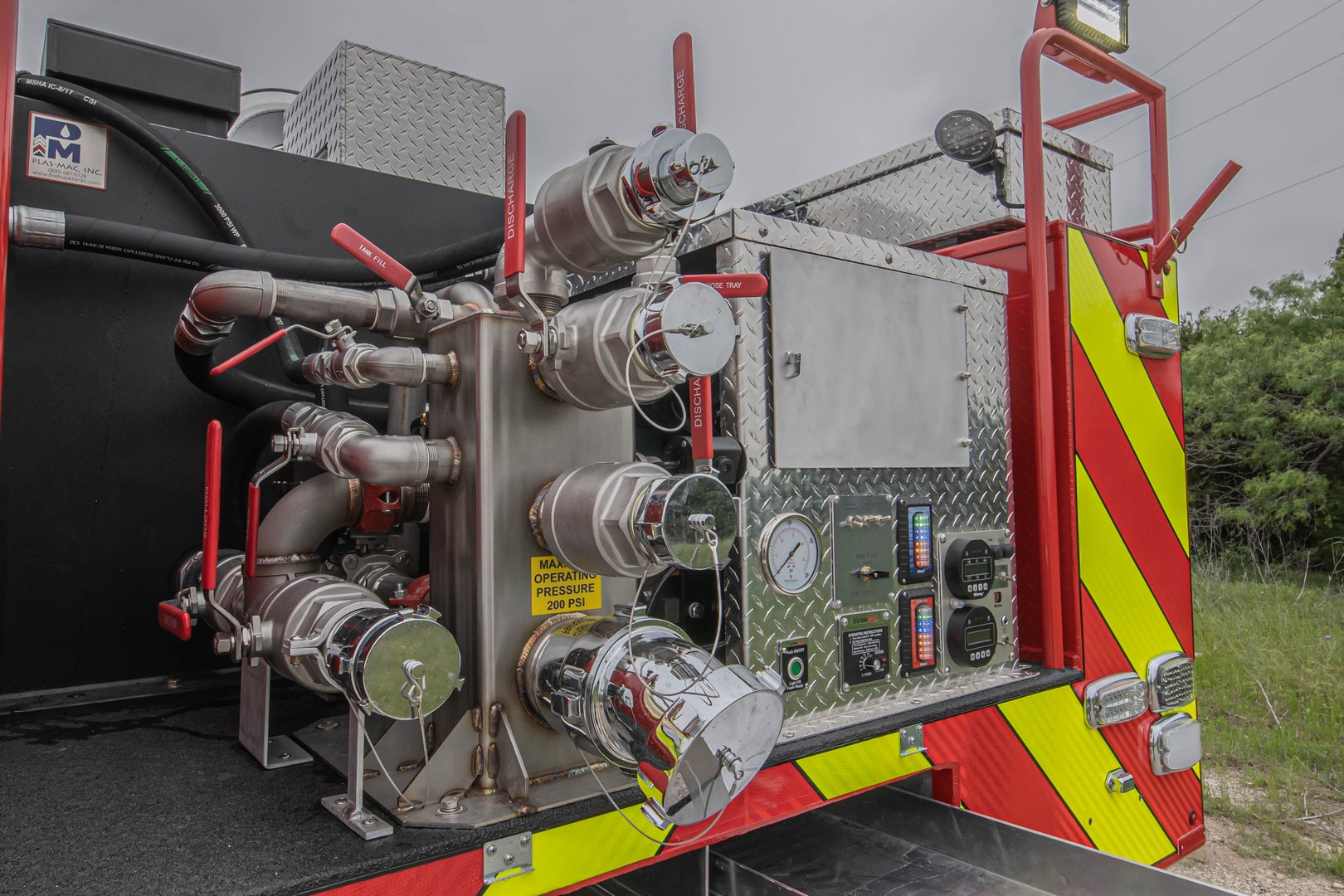

Standard Stainless Steel Manifold
High Pressure Hose
Pump Check Valve, 2.5″
Valves, S/S, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Electric, Aux Pump, Additional or IPOS
Pump Enclosure – Diesel Pump
Low Water Pressure Cut-Off
Pump Fuel from Chassis
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Engine Oil Drain
Pump Cooler, Bypass-To-Tank, 3/8″
Pump Drain, Master Drain–Low Point
Upgrade Manifold for Bumper Discharges
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1.5″ Aux Pump
Manifold inlet, 4″ Rear
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Discharge, 1.5″, Rear, Pre-connect
Discharge, 1.5″, Front Bumper
Discharge, 1.5″, Front Body (Through Tank)
Hose Reel, Hannay, Center Mount Over Pump, Elec Rewind, Alum
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 800#, 1″ x 200′
Ground Sweep Discharges, Front Bumper
Foam System, FoamPro, 1601, Class A
Water Tank Gauge, Class 1, Rear & Cab
Water Tank Capacity, 400 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner
Overflow, Water Tank, 3″ PVC Pipe, <500G
Tank to Pump, Piping Connection, 3″, 350 GPM Flow
Pump to Tank, Fill Connection, 1.5″, 100 GPM Flow
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 10 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
Foam Tank Gauge, Class 1, Class A, Rear & Cab
GRAPHICS
Reflective Lettering, Purchaser Installed
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
