Moscow Rural Volunteer Fire District

Delivered Units, Step-Side Type 5/6

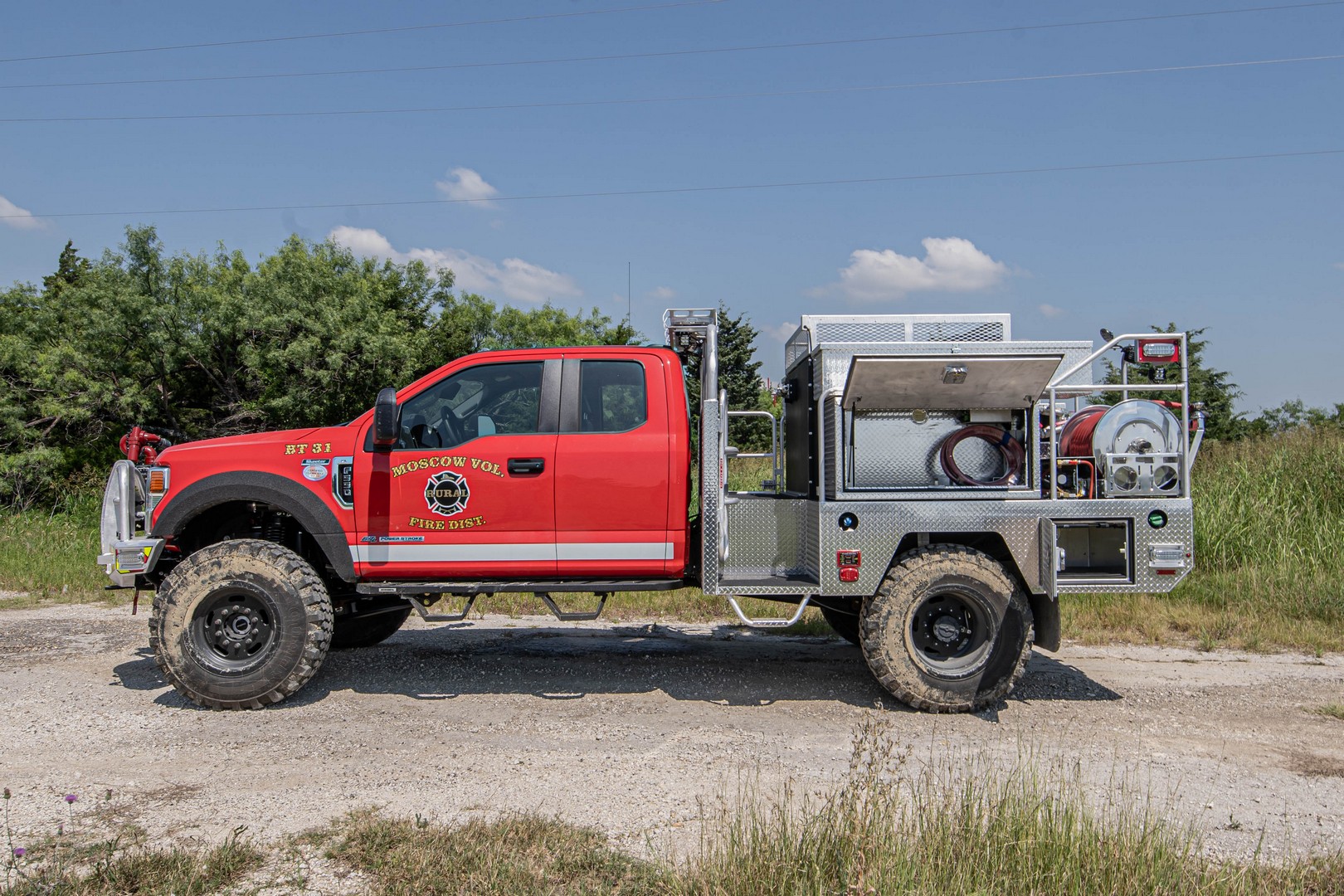

Our team has completed a new type 5 wildland unit for Moscow Rural Volunteer Fire District in Moscow, ID. It’s a Skeeter Step Side Body, Alum, 114″ x 96″, 60 CA on a Ford F550 – 4×4 – Diesel – 4 Door chassis with a 400 Gallon Poly water tank. Check out the complete specs for Job No. 14582 below.

Dealer Information

Andy Siebers
509-822-1703
[email protected]

Hughes Fire Equipment Inc.
www.hughesfire.com
More Info

TRUCK DETAILS

Paint Layout (Single Stock Color)
Ford F550 – 4×4 – Diesel – 4 Door
Suspension System, Ford, 4×4, 6″, 4 Link
Tires and Wheels, Super Single 335/80 R20 (4)
Spare Tire and Wheel, Super Single 335/80 R20 (1)
Spare Tire, Top of Tank
Bumper Mounted Grill Gruard
Skeeter Aluminum Custom Bumper
Mud Flaps, Rear Wheels, SBT Logo, S/S Brackets
Front Bumper, 1/4″ Skid Protection Panel
Cab Steps, Custom Painted, (4) Door or Extended Cab
Cab Console, Poly, Custom
Battery Master Disconnect, 12V
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Ground Lights, Cab, 2 Door, LED (2) Grote 61E41
Bed Liner, Body/Step Surfaces
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Step Side Body, Alum, 114″ x 96″, 60CA
Transverse Tool Storage Front of Tank
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Cmpt Under Frt Bdy D/S & P/S, Alum T/P, 24″W x 15″H x 24″D, Vert Hngd Dr
Rear Center Under Body Compt, 96″Dx33″Wx5″H, Drop Down Door
Equipment Tray, Alum, 94″L, UHMW slide
Compartment Ventilation
Key Locks, Compartments, Hinged Doors
Compartment Lights, LED Strip Light, FRC
Compartment Light Door Switches, Automatic (2)
Door Ajar Light, Flashing LED, Red Lens
Hose Tray, Driver’s Side, 72 in. long
Tool Tray, Passenger Side, 72 in. long.
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, LH REAR(1)
Ground Lights, Under Rear Step, LED (2), Grote 61E41
Work Lights, LED, (4), Grote #61E41
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
Clearance Lights, LED, DOT
License Plate, Mount, Lighting
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene Light, (6) Rigid Dually
Auxilliary 12 volt Power, Center Console
Back Up Alarm, Buyers, #BA107
Siren, Electronic, Whelen, CCSRN3. CEN COM
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection
Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
Pump, Hale, Aux, Diesel, HPX300-KBD 24 Kubota
Standard Stainless Steel Manifold
Valves, S/S, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Hand, Guzzler
Remote Pump Control in Cab (Diesel)
Pump Fuel from Fuel Can (Plastic 6 gallon)
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Pump Drain, Master Drain–Low Point
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Engine Oil Drain
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1″, Aux Pump
Discharge, .75″GH, Rear, Garden Hose Outlet
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 300#, 1″ x 150′
Ground Sweep Discharges, Front Bumper
Foam system, Scotty #4171, Through-the-pump, Built-in, Aux Pump
Water Tank Capacity, 400 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Tank Gauge, Clear Tank Sight Level
Fill Tower, Water Tank, 12″ x 12″ x 6″, LH Rear Corner
Overflow, Water Tank, 3″ PVC Pipe, <500G
Pump to Tank, Fill Connection, 1″, 100 GPM Flow
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 10 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
Lettering, Cab, 3″ Scotchlite Reflective, 50 Letters
Door Graphic Emblems, (2) Custom
Stripe, Cab/Body, Single Reflective, 4″
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
CHASSIS
Paint Layout (Single Stock Color)
Ford F550 – 4×4 – Diesel – 4 Door
Suspension System, Ford, 4×4, 6″, 4 Link
Tires and Wheels, Super Single 335/80 R20 (4)
Spare Tire and Wheel, Super Single 335/80 R20 (1)
Spare Tire, Top of Tank
Bumper Mounted Grill Gruard
Skeeter Aluminum Custom Bumper
Mud Flaps, Rear Wheels, SBT Logo, S/S Brackets
Front Bumper, 1/4″ Skid Protection Panel
Cab Steps, Custom Painted, (4) Door or Extended Cab
Cab Console, Poly, Custom
Battery Master Disconnect, 12V
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Ground Lights, Cab, 2 Door, LED (2) Grote 61E41
BODY
Bed Liner, Body/Step Surfaces
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Step Side Body, Alum, 114″ x 96″, 60CA
Transverse Tool Storage Front of Tank
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Cmpt Under Frt Bdy D/S & P/S, Alum T/P, 24″W x 15″H x 24″D, Vert Hngd Dr
Rear Center Under Body Compt, 96″Dx33″Wx5″H, Drop Down Door
Equipment Tray, Alum, 94″L, UHMW slide
Compartment Ventilation
Key Locks, Compartments, Hinged Doors
Compartment Lights, LED Strip Light, FRC
Compartment Light Door Switches, Automatic (2)
Door Ajar Light, Flashing LED, Red Lens
Hose Tray, Driver’s Side, 72 in. long
Tool Tray, Passenger Side, 72 in. long.
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, LH REAR(1)
Ground Lights, Under Rear Step, LED (2), Grote 61E41
Work Lights, LED, (4), Grote #61E41
ELECTRICAL
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
Clearance Lights, LED, DOT
License Plate, Mount, Lighting
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene Light, (6) Rigid Dually
Auxilliary 12 volt Power, Center Console
Back Up Alarm, Buyers, #BA107
Siren, Electronic, Whelen, CCSRN3. CEN COM
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection
Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
SUPPRESION
Pump, Hale, Aux, Diesel, HPX300-KBD 24 Kubota
Standard Stainless Steel Manifold
Valves, S/S, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Hand, Guzzler
Remote Pump Control in Cab (Diesel)
Pump Fuel from Fuel Can (Plastic 6 gallon)
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Pump Drain, Master Drain–Low Point
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Engine Oil Drain
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1″, Aux Pump
Discharge, .75″GH, Rear, Garden Hose Outlet
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 300#, 1″ x 150′
Ground Sweep Discharges, Front Bumper
Foam system, Scotty #4171, Through-the-pump, Built-in, Aux Pump
Water Tank Capacity, 400 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Tank Gauge, Clear Tank Sight Level
Fill Tower, Water Tank, 12″ x 12″ x 6″, LH Rear Corner
Overflow, Water Tank, 3″ PVC Pipe, <500G
Pump to Tank, Fill Connection, 1″, 100 GPM Flow
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 10 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
GRAPHICS
Lettering, Cab, 3″ Scotchlite Reflective, 50 Letters
Door Graphic Emblems, (2) Custom
Stripe, Cab/Body, Single Reflective, 4″
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
EQUIPMENT
