Moscow Rural Volunteer Fire District

Delivered Units, Step-Side Type 3/4

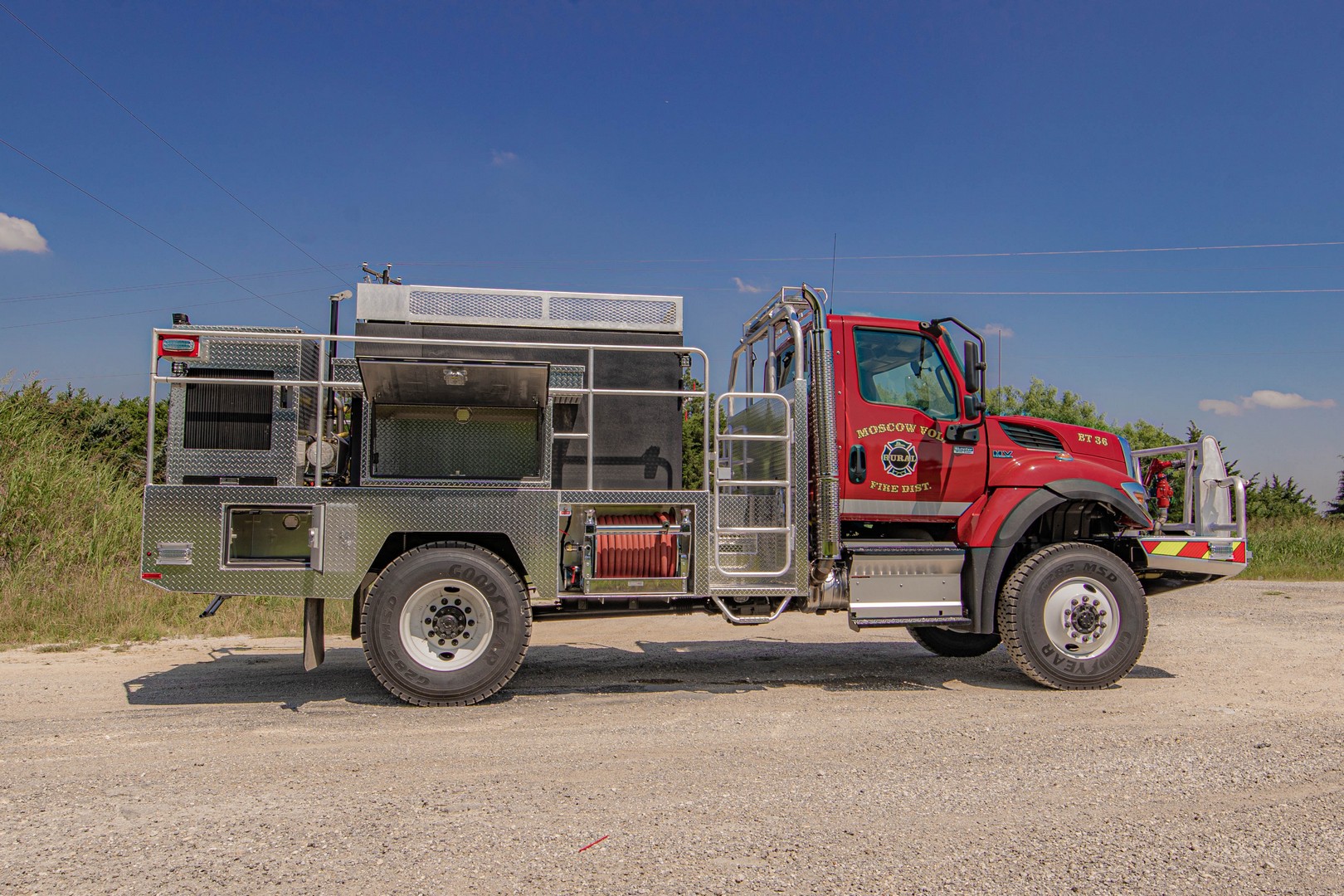

Our team has completed a new type 4 wildland unit for Moscow Rural Volunteer Fire District in Moscow, ID. It’s a Skeeter Step-Side Body, Alum, 168 on a International HV507, 2 Door Diesel 4×4 chassis with a 1000 Gallons, Poly water tank. Check out the complete specs for Job No. 14583 below.

Dealer Information

Andy Siebers
509-822-1703
[email protected]

Hughes Fire Equipment Inc.
www.hughesfire.com
More Info

TRUCK DETAILS

Paint (Single Stock Color)
International HV507 SFA, 2 Door, Diesel, 4×4 (2020)
Chassis Fleet/Government Incentive Discount
Bumper Extension, 24″, Large Truck
Bumper Platform, 24″, Large Truck
Stock Tires/Wheels
Spare Tire and Wheel, 12R22.5
Custom Fabricated Bumper/Grill Guard, (Big Truck), Fixed Mount
Mud Flaps, Rear Wheels, SBT Logo
Front Bumper, 5/16″ Skid Protection Panel, Heavy Duty
Transfer Case, Skid Protection Panel
Cab Console, Alum, Custom
Battery Switch, Master Disconnect, CH, Rotary
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Trailer Hitch Power Plug, 12V, 7 Prong
FRC SoBrite LED Off-Road Lights, 6′ (2)
Ground Lights, Cab, 2 Door, LED STRIPS
Tilt Meter
Back-Up Camera, Rear View Safety, (1) camera
Radio, Fire, Installation, Purchaser Supplied
Radio, Fire, Installation, Purchaser Supplied – Antenna Only
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Tank Access Ladder, 1″ Aluminum Tubing
Step-Side Body, Alum, 168″ x 100″, 102 CA
Diamond Plate Finish Body and Compartments/Trays
Top of Tank Storage Rack
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Cmpt Under Frt Bdy, D/S & P/S, Hose Reel, 36″W x 27″H x 24″D, TFS
Cmpt Under Rear Bdy, D/S & P/S, Alum T/P, 20″ W x 15″H x 23″D, Vert Hingd Dr
Rear Center Under Body Compt, Drop Down Door
Equipment Tray, Alum, UHMW slide
Compartment Ventilation
Key Locks, Compartments, Hinged Doors
Compartment Lights, LED Strip Light
Compartment Light Door Switches, Automatic
Door Ajar Alarm, Center Console
Door Ajar Light, Flashing LED, Clear Lens
Hose Tray, Drivers Side, 64 in. long
Tool Tray, Passenger Side, 64 in. long
Turtle Tile
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, step cubicles
Side Body Access Steps, Stirrup (2)
Ground Lights, Under Cubicle Step, LED (2), Grote #63871
Body Work Lights, LED, (4), Grote #63871
Power Outlets 12V, Cigarette Lighter Type, Cab (3)
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
Grounds Coated with Heavy Duty Sealant After Installation
Spare Circuit, 15 AMP
Clearance Lights, LED, DOT
License Plate, Mount, Lighting
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene Light, Flood, Rigid 10″
Scene Light, Combo, Rigid 20″
Scene Light, (6) Rigid Dually
Back Up Alarm
Whelen Cencom Carbide, Electronic Siren
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection
Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
Pump, Hale, T3, Diesel, HPX300-DK-0 Kubota
Standard Stainless Steel Manifold
Valves, S/S, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Electric, Aux Pump, Additional or IPOS
Pump Enclosure – Diesel Pump
Pump Control Panel Enclosure
Remote Pump Control in Cab (Electronic)
Pump Fuel from Chassis
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Pump Engine Oil Drain
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Drain, Master Drain–Low Point
Upgrade Manifold for Bumper Discharges
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1″, Aux Pump
Discharge, .75″GH, Rear, Garden Hose Outlet
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Discharge, 1.5″, Rear, Pre-connect
Discharge, 1.5″, Front Body (Through Tank)

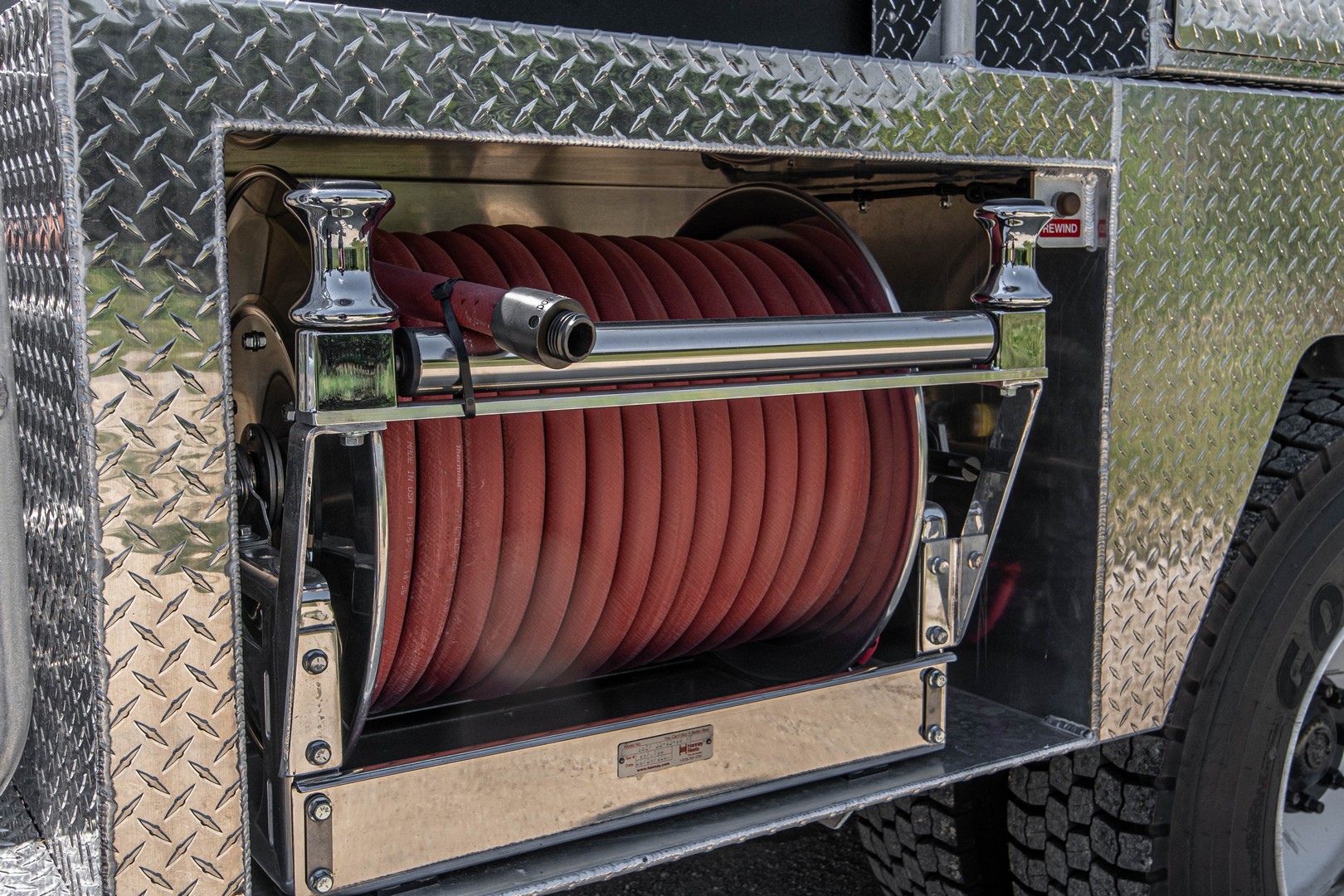

Hose Reel, Hannay, Elec Rewind, Alum (2)
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 300#, 1″ x 150′
Roller, Hose Reel, Top
Ground Sweep Discharges, Front Bumper
Bmpr Monitor, Akron, Forestry, Elec
Automatic Monitor Drain
Whip Hose Lines, (2) Front Body 1″ x 10′, Booster Hose, 300#, w/cplgs
Foam System, FoamPro, 1601, Class A
Water Tank Gauge, Class 1, Rear & Cab
Water Tank Capacity, 1000 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Tank Gauge, Translucent Tank Sight Level
Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner
Overflow, Water Tank, 4″ PVC Pipe, <900G
Tank to Pump, Piping Connection, 3″, 350 GPM Flow
Pump to Tank, Fill Connection, 1.5″, 300 GPM Flow
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 20 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
Foam Tank Gauge, Class 1, Class A, Rear & Cab
Door Graphic Emblems, (2) Custom
No Cab Roof Lettering
Stripe, Cab/Body, Single Reflective, 4″
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
CHASSIS
Paint (Single Stock Color)
International HV507 SFA, 2 Door, Diesel, 4×4 (2020)
Chassis Fleet/Government Incentive Discount
Bumper Extension, 24″, Large Truck
Bumper Platform, 24″, Large Truck
Stock Tires/Wheels
Spare Tire and Wheel, 12R22.5
Custom Fabricated Bumper/Grill Guard, (Big Truck), Fixed Mount
Mud Flaps, Rear Wheels, SBT Logo
Front Bumper, 5/16″ Skid Protection Panel, Heavy Duty
Transfer Case, Skid Protection Panel
Cab Console, Alum, Custom
Battery Switch, Master Disconnect, CH, Rotary
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Trailer Hitch Power Plug, 12V, 7 Prong
FRC SoBrite LED Off-Road Lights, 6′ (2)
Ground Lights, Cab, 2 Door, LED STRIPS
Tilt Meter
Back-Up Camera, Rear View Safety, (1) camera
Radio, Fire, Installation, Purchaser Supplied
Radio, Fire, Installation, Purchaser Supplied – Antenna Only
BODY
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Tank Access Ladder, 1″ Aluminum Tubing
Step-Side Body, Alum, 168″ x 100″, 102 CA
Diamond Plate Finish Body and Compartments/Trays
Top of Tank Storage Rack
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Cmpt Under Frt Bdy, D/S & P/S, Hose Reel, 36″W x 27″H x 24″D, TFS
Cmpt Under Rear Bdy, D/S & P/S, Alum T/P, 20″ W x 15″H x 23″D, Vert Hingd Dr
Rear Center Under Body Compt, Drop Down Door
Equipment Tray, Alum, UHMW slide
Compartment Ventilation
Key Locks, Compartments, Hinged Doors
Compartment Lights, LED Strip Light
Compartment Light Door Switches, Automatic
Door Ajar Alarm, Center Console
Door Ajar Light, Flashing LED, Clear Lens
Hose Tray, Drivers Side, 64 in. long
Tool Tray, Passenger Side, 64 in. long
Turtle Tile
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, step cubicles
Side Body Access Steps, Stirrup (2)
Ground Lights, Under Cubicle Step, LED (2), Grote #63871
Body Work Lights, LED, (4), Grote #63871
ELECTRICAL
Power Outlets 12V, Cigarette Lighter Type, Cab (3)
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
Grounds Coated with Heavy Duty Sealant After Installation
Spare Circuit, 15 AMP
Clearance Lights, LED, DOT
License Plate, Mount, Lighting
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene Light, Flood, Rigid 10″
Scene Light, Combo, Rigid 20″
Scene Light, (6) Rigid Dually
Back Up Alarm
Whelen Cencom Carbide, Electronic Siren
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection
Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
SUPPRESION
Pump, Hale, T3, Diesel, HPX300-DK-0 Kubota
Standard Stainless Steel Manifold
Valves, S/S, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Electric, Aux Pump, Additional or IPOS
Pump Enclosure – Diesel Pump
Pump Control Panel Enclosure
Remote Pump Control in Cab (Electronic)
Pump Fuel from Chassis
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Pump Engine Oil Drain
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Drain, Master Drain–Low Point
Upgrade Manifold for Bumper Discharges
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1″, Aux Pump
Discharge, .75″GH, Rear, Garden Hose Outlet
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Discharge, 1.5″, Rear, Pre-connect
Discharge, 1.5″, Front Body (Through Tank)
Hose Reel, Hannay, Elec Rewind, Alum (2)
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 300#, 1″ x 150′
Roller, Hose Reel, Top
Ground Sweep Discharges, Front Bumper
Bmpr Monitor, Akron, Forestry, Elec
Automatic Monitor Drain
Whip Hose Lines, (2) Front Body 1″ x 10′, Booster Hose, 300#, w/cplgs
Foam System, FoamPro, 1601, Class A
Water Tank Gauge, Class 1, Rear & Cab
Water Tank Capacity, 1000 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Tank Gauge, Translucent Tank Sight Level
Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner
Overflow, Water Tank, 4″ PVC Pipe, <900G
Tank to Pump, Piping Connection, 3″, 350 GPM Flow
Pump to Tank, Fill Connection, 1.5″, 300 GPM Flow
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 20 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
Foam Tank Gauge, Class 1, Class A, Rear & Cab
GRAPHICS
Door Graphic Emblems, (2) Custom
No Cab Roof Lettering
Stripe, Cab/Body, Single Reflective, 4″
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
EQUIPMENT
