Maui Co. Fire Rescue

Delivered Units, Rescue-Side Type 5/6

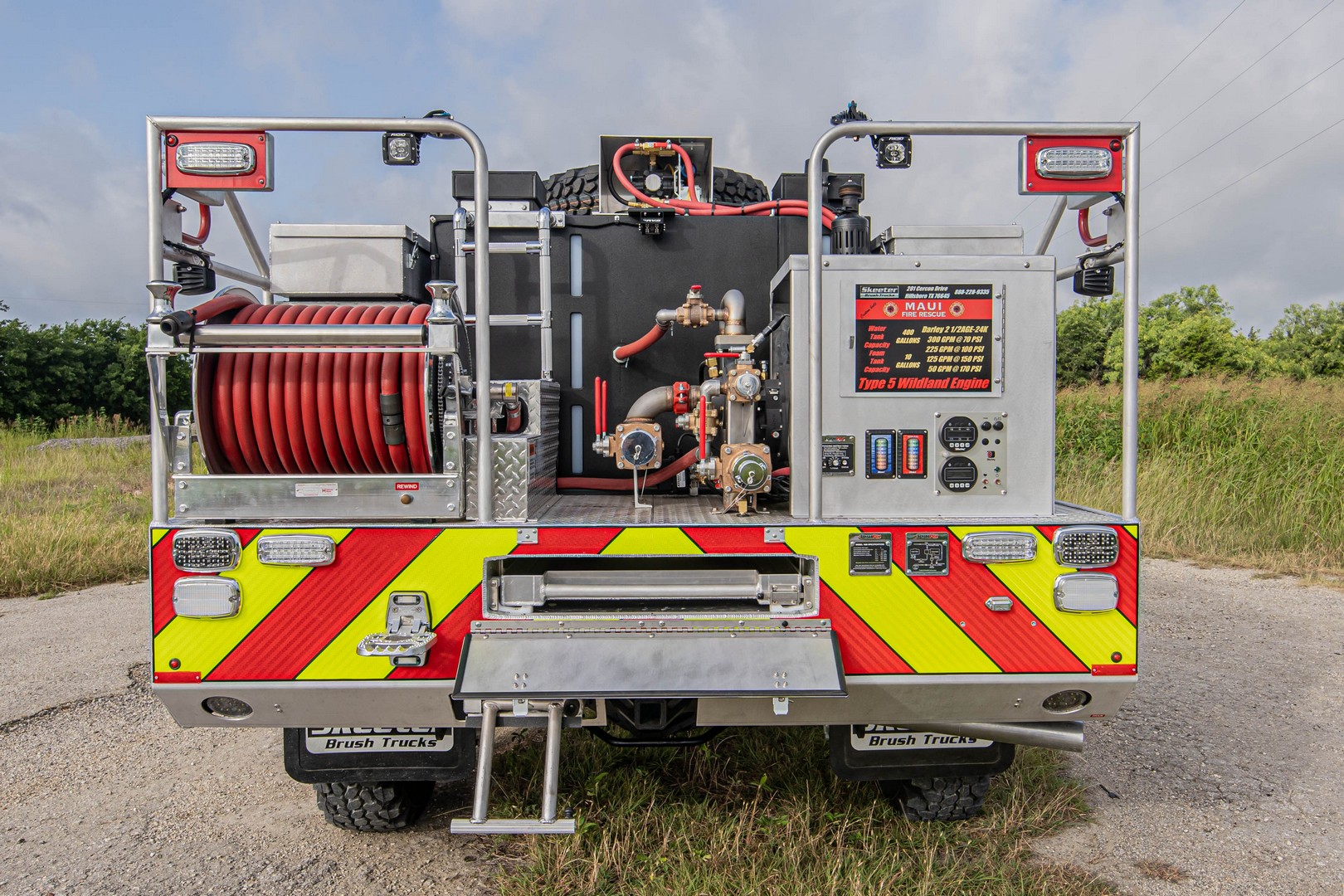

Our team has completed a new type 5 wildland unit for County of Maui in Kahului, HI. It’s a Skeeter Rescue Side, Alum, 114 on a Ford F550 – 4×4 – Diesel – 4 Door chassis with a 400 Gallon Poly water tank. Check out the complete specs for Job No. 14588 below.

Dealer Information

Scott Olmos
808-425-8050
[email protected]

Hughes Fire Equipment Inc.
www.hughesfire.com
More Info

TRUCK DETAILS

Paint (Single Stock Color)
Ford F550 – 4×4 – Diesel – 4 Door (2022)
Chassis 60″ CA
Power Package (Electric Windows, Locks, Mirrors)
Suspension System, FORD, 4×4, 6″, 4 Link
Allignment
Rust Proofing
Tires and Wheels, Super Single 335/80 R20 (4)
Spare Tire and Wheel, Super Single 335/80 R20 (1)
Spare Tire, Top of Tank
Skeeter Aluminum Custom Bumper, Bed Lined BLACK
Mud Flaps, Rear Wheels, SBT Logo
1/4″ Skid Protection Panel
Transfer Case, Skid Protection Panel, SMALL CHASSIS
Cab Steps, Custom Painted, (4) Door or Extended Cab
Cab Console, Poly, Custom
Winch, Warn, #M15000, Electric, Front Mount, 15,000#
Battery Master Disconnect, 12V
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Ground Lights, Cab, 4 Door, LED (4) Grote #63871
Back-Up Camera, Rear View Safety, (1) camera
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Tank Access Ladder, 1″ Aluminum Tubing
Rescue Side, Alum, 114″ x 96″, 60CA
DA Finish Body and Compartments/Trays
Front of Body, 22 deg Corners
Body Compartment Paddle Latches
Transverse Compartment (Rescue-Side) 18″W
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Cmpt Under Rear Bdy, D/S & P/S, Alum, 20″ W x 15″H x 23″D, Vert Hingd Dr
Rear Center Under Body Compt, Drop Down Door
Equipment Tray, Alum, UHMW slide
Compartment Ventilation
Compartment Lights, LED Strip Light
Compartment Light Door Switches, Automatic
Door Ajar Light, Flashing, Red LED
Tool Tray, Passenger Side, 72 in. long.
Tool Tray, Driver Side, 72 in. long
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, DS REAR(1)
Side Body Access Steps, Stirrup (2)
Ground Lights, Under Rear Step, LED (2), Grote #63871
Body Work Lights, LED, (4), Grote #63871
Power Outlets 12V, Cigarette Lighter Type, Cab (2)
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
Clearance Lights, LED, DOT
License Plate, Mount, Lighting
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene Light, Combo, Rigid 20″
Scene Light, (6) Rigid Dually
Back Up Alarm
Siren, Electronic, Whelen, CCSRN3. CEN COM
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection

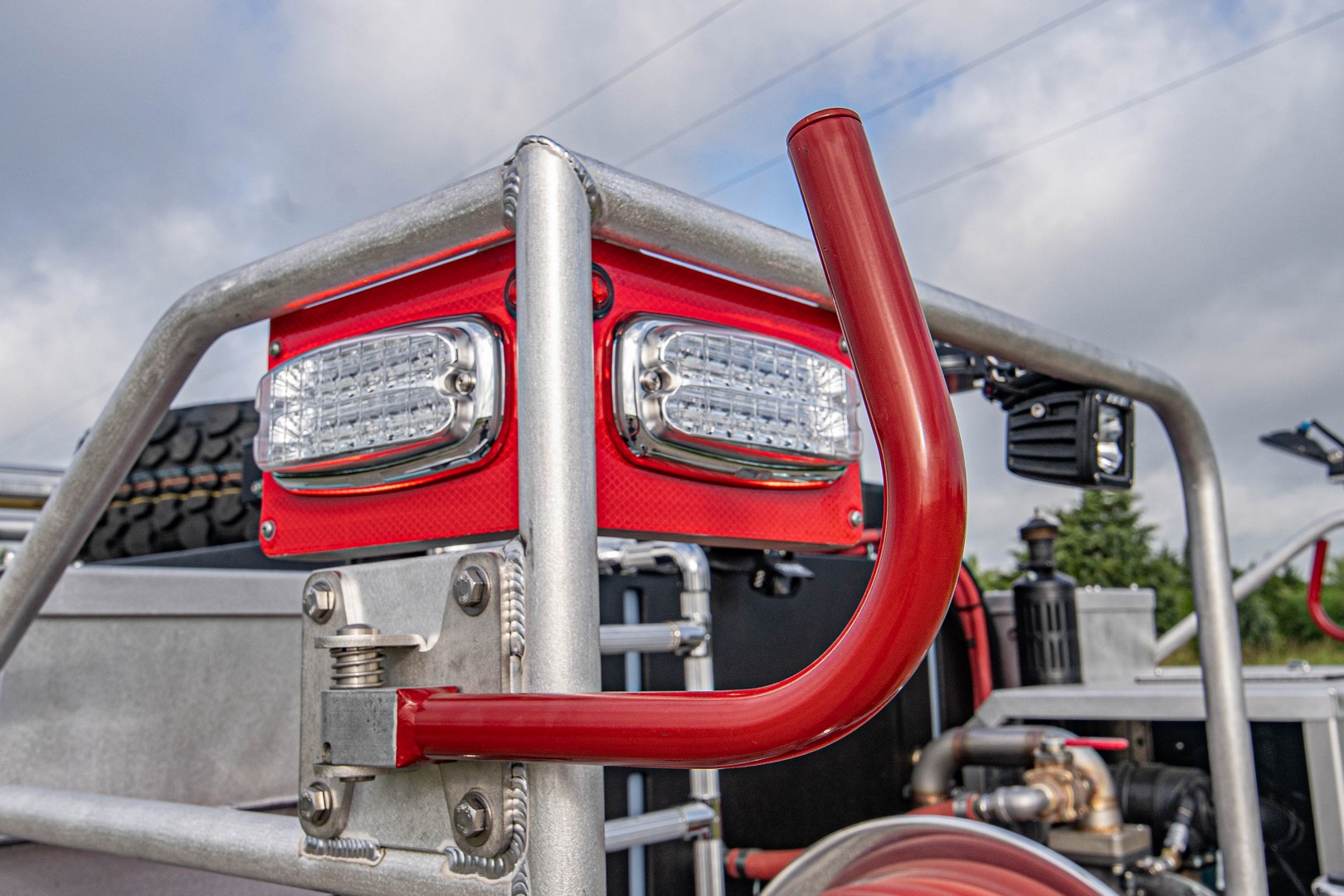

Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
Pump Darley, 2.5 AGE 24K Diesel
Pump Seal (Packing)
Standard Stainless Steel Manifold
Valves, Akron, Brass, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Electric, Aux Pump, Additional or IPOS
Pump Enclosure – Diesel Pump
Pump Control Panel Enclosure
Pump Fuel from Chassis
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Engine Oil Drain
Pump Drain, Master Drain–Low Point
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1″, Aux Pump
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Discharge, 1.5″, Rear, w/1.5″ cap
Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 300#, 1″ x 150′
Roller, Hose Reel, Top
Foam System, FoamPro, 1601, Class A
Water Tank Gauge, Class 1, Rear & Cab
Water Tank Capacity, 400 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Tank Gauge, Translucent Tank Sight Level
Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner
Overflow, Water Tank, 3″ PVC Pipe, <500G
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 10 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
Foam Tank Gauge, Class 1, Class A, Rear & Cab
Lettering, Cab, 3″ Scotchlite Reflective, 50 Letters
Door Graphic Emblems, (2) Custom
Cab Roof Numbers
REFLECTIVE STRIPES
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
Extinquisher
CHASSIS
Paint (Single Stock Color)
Ford F550 – 4×4 – Diesel – 4 Door (2022)
Chassis 60″ CA
Power Package (Electric Windows, Locks, Mirrors)
Suspension System, FORD, 4×4, 6″, 4 Link
Allignment
Rust Proofing
Tires and Wheels, Super Single 335/80 R20 (4)
Spare Tire and Wheel, Super Single 335/80 R20 (1)
Spare Tire, Top of Tank
Skeeter Aluminum Custom Bumper, Bed Lined BLACK
Mud Flaps, Rear Wheels, SBT Logo
1/4″ Skid Protection Panel
Transfer Case, Skid Protection Panel, SMALL CHASSIS
Cab Steps, Custom Painted, (4) Door or Extended Cab
Cab Console, Poly, Custom
Winch, Warn, #M15000, Electric, Front Mount, 15,000#
Battery Master Disconnect, 12V
Battery Charger and Shore Power Plug, Kussmaul 1000 and Auto-Eject
Ground Lights, Cab, 4 Door, LED (4) Grote #63871
Back-Up Camera, Rear View Safety, (1) camera
BODY
Receiver, Rear, Winch/Rope/Trailer, 10,000#
Tank Access Ladder, 1″ Aluminum Tubing
Rescue Side, Alum, 114″ x 96″, 60CA
DA Finish Body and Compartments/Trays
Front of Body, 22 deg Corners
Body Compartment Paddle Latches
Transverse Compartment (Rescue-Side) 18″W
Compartment, Drivers Side, Lift-Up Door
Compartment, Passengers Side, Lift-Up Door
Cmpt Under Rear Bdy, D/S & P/S, Alum, 20″ W x 15″H x 23″D, Vert Hingd Dr
Rear Center Under Body Compt, Drop Down Door
Equipment Tray, Alum, UHMW slide
Compartment Ventilation
Compartment Lights, LED Strip Light
Compartment Light Door Switches, Automatic
Door Ajar Light, Flashing, Red LED
Tool Tray, Passenger Side, 72 in. long.
Tool Tray, Driver Side, 72 in. long
Rear Step, Pull out and drop down
Step, Sig-4, Folding, Lighted, DS REAR(1)
Side Body Access Steps, Stirrup (2)
Ground Lights, Under Rear Step, LED (2), Grote #63871
Body Work Lights, LED, (4), Grote #63871
ELECTRICAL
Power Outlets 12V, Cigarette Lighter Type, Cab (2)
Fuse Box
Chassis Harness
Wiring Harness, Body Electrical
Clearance Lights, LED, DOT
License Plate, Mount, Lighting
Stop/Tail/Turn Lights, Whelen M6BTT/M6FC
Back up Lights, Whelen M6 Series, LED,
Scene Light, Combo, Rigid 20″
Scene Light, (6) Rigid Dually
Back Up Alarm
Siren, Electronic, Whelen, CCSRN3. CEN COM
Speaker, Whelen, #SA315P, 100 Watt
Lightbar Mounting, Headache Rack, Alum, Enclosure Protection
Lightbar, Whelen,Legacy, 54″
Warning Lights, Whelen, M-7 Series (12) Lights
SUPPRESION
Pump Darley, 2.5 AGE 24K Diesel
Pump Seal (Packing)
Standard Stainless Steel Manifold
Valves, Akron, Brass, Quarter Turn
Hose Threads
Exhaust System, Vertical, Rain Cap, Aux Pump
Primer, Electric, Aux Pump, Additional or IPOS
Pump Enclosure – Diesel Pump
Pump Control Panel Enclosure
Pump Fuel from Chassis
Battery Supply, 12V, Chassis, Master Switch & Solenoid
Aux Fire Pump Mntg, P/S Rear, Bolted
Pump Engine Oil Drain
Pump Drain, Master Drain–Low Point
Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl
Tank-To-Pump, Water Tank, 2.5″, Install
Tank Fill and Cooling Line, Water Tank, 1″, Aux Pump
Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap
Discharge, 1.5″, Rear, w/1.5″ cap
Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum
200 Foot Reel Capacity
Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl
Nozzle Mounting
Hose, Water, 300#, 1″ x 150′
Roller, Hose Reel, Top
Foam System, FoamPro, 1601, Class A
Water Tank Gauge, Class 1, Rear & Cab
Water Tank Capacity, 400 Gallons, Poly
Water Tank, Specs
Water Tank Shape, Rectangular
Water Tank, NFPA Compliance
Tank Gauge, Translucent Tank Sight Level
Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner
Overflow, Water Tank, 3″ PVC Pipe, <500G
Water Tank Drain Plug, 1.5″
Foam Tank Capacity, 10 Gallons, Class A, Poly
Foam Tank, Fill and Vent, Class A
Foam Tank to Foam System, 3/4″
Foam Tank Drain and Valve, 3/4″
Foam Tank Gauge, Class 1, Class A, Rear & Cab
GRAPHICS
Lettering, Cab, 3″ Scotchlite Reflective, 50 Letters
Door Graphic Emblems, (2) Custom
Cab Roof Numbers
REFLECTIVE STRIPES
Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper
Stripe, Reflective, SCOTCHLITE, Chevron, Rear
Capacities Placard, Reflective
EQUIPMENT
Extinquisher
